Marine Cast Iron DIN PN10 Air Vent Head
Model NO.: DIN air vent head
Standard: DIN
Pressure: PN10,PN6
Size: DN50-DN450
Material: Cast iron
Type: Globe,angle
Media: Sea water
Payment: T/T,L/C
Package: Plywood case
- Tel:+86 15864710057
- E-mail:sales@qdstvalve.com
Description
Marine Cast Iron DIN PN10 PN16 Air Vent Head

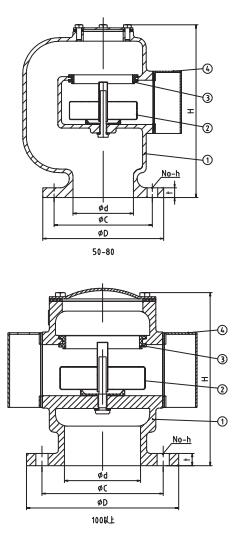

6 | GASKET | NON-ASBESTOS |
|
5 | SCREEN | SS400 | |
4 | COVER | SS400 | |
3 | RUBBER RING | NBR | |
2 | FLOAT | SUS304 | |
1 | BODY | FC200 | |
NO. | NAME OF PART | MATERIAL | |
DIN PN10 AIR VENT HEAD | |||
Dimensions data (mm)
DN | d | D | C | NO-h | t | H |
50 | 50 | 165 | 125 | 4-18 | 14 | 175 |
65 | 65 | 185 | 145 | 4-18 | 14 | 204 |
80 | 80 | 200 | 160 | 4-18 | 14 | 244 |
100 | 100 | 220 | 180 | 8-18 | 16 | 220 |
125 | 125 | 250 | 210 | 8-18 | 16 | 250 |
150 | 150 | 285 | 240 | 8-22 | 18 | 285 |
200 | 200 | 340 | 295 | 8-22 | 20 | 365 |
250 | 250 | 395 | 350 | 12-22 | 22 | 430 |
300 | 300 | 445 | 400 | 12-22 | 22 | 530 |
350 | 335 | 505 | 460 | 16-22 | 24 | 570 |
400 | 380 | 565 | 515 | 16-26 | 24 | 640 |
450 | 430 | 615 | 565 | 20-26 | 24 | 713 |
