JIS F3060 5K Cast steel marine vertical type storm valve
Model NO.: F3060R(F3059),F3060
Standard: JIS
Pressure: 5K,10K
Size: DN50-DN200
Material: Cast steel
Type: Storm valve
Media: Sea water
Payment: T/T,L/C
Package: Plywood case
- Tel:+86 15864710057
- E-mail:sales@qdstvalve.com
Description
Marine Cast Steel Globe Storm Valve 5K F3060
Valvulas de Globo Mal Tiempo en Acero Fundido Marino
Морской литой стальной шнековый клапан
مصبوب البحرية الصلب العالم العاصفة صمام
Storm valve for scupper,soil and sanitary discharge lines. When ordering please specify type of flange fitting,and also please specify if the screw-down closing handle is required.
DESIGN STANDARD | JIS F3060-1996 | |
TEST | JIS F7400-1996 | |
HYDRAULTC INSPECTION | ||
TEST PRESSURE(kgf/cm2) | BODY | 10.5 |
SEAT | 7.7 | |

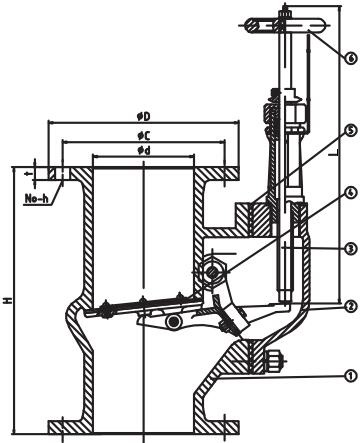

Specification
6 | HANDWHEEL | FC200 |
|
5 | GASKET | NON-ASBESTOS | |
4 | SEAT | NBR | |
3 | STEM | SUS420 | |
2 | BONNET | SC450 | |
1 | BODY | SC450 | |
NO. | NAME OF PART | MATERIAL | |
CAST STEEL MARINE VERTICAL STORM VALVE | |||
Dimensions data(mm)
DN | H | D | C | n-d | L |
50 | 210 | 130 | 105 | 4-15 | 250 |
65 | 240 | 155 | 130 | 4-15 | 250 |
80 | 260 | 180 | 145 | 4-19 | 250 |
100 | 280 | 200 | 165 | 8-19 | 250 |
125 | 330 | 235 | 200 | 8-19 | 250 |
150 | 360 | 265 | 230 | 8-19 | 250 |
200 | 450 | 320 | 280 | 8-23 | 250 |
